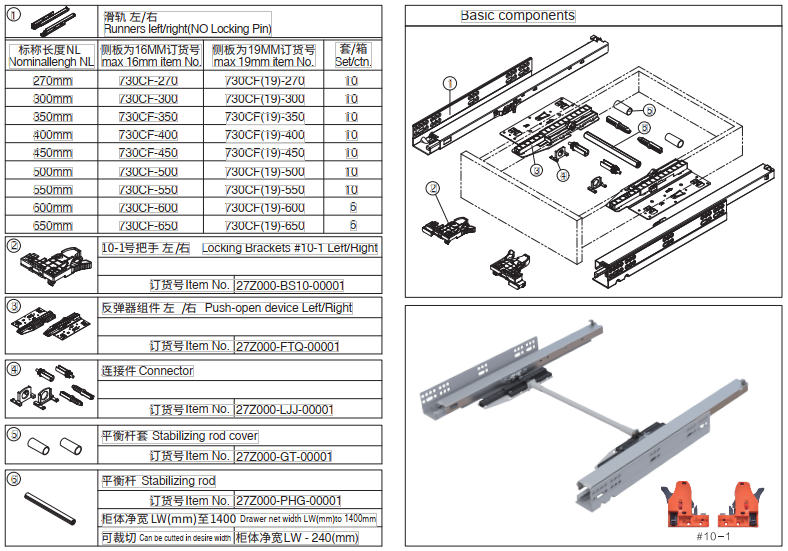

730CF Full extension push-open undermount slide with 3D (6ways) locking brackets
Describe：
>Smooth and slient movenment,perfectfunctionmechanical push-open system
>Quick and easy assembling anddismantle the drawer
>Height adjustment 0~+3mm
>Side adjustment ±1.5mm
>Depth (In and Out)adjustment ±2mm
>Loading capacity 40KG
Scope of applicatin ● Cabinet heights from 300mm to 800mm ● Cabinet widths from 300mm to 1200mm ● Interior depth of at least 200mm ● Door thickness from 15mm to 25mm Door adjustments ● Up/down +/-2mm ● Left/right +/-2mm ● Back/forth +/-2mm
